Industrial Inkjet & Fluid System Supplies
High-integrity consumables, field-proven turnkey filtration setups, and precision custom fluidic components for global OEM integrations.

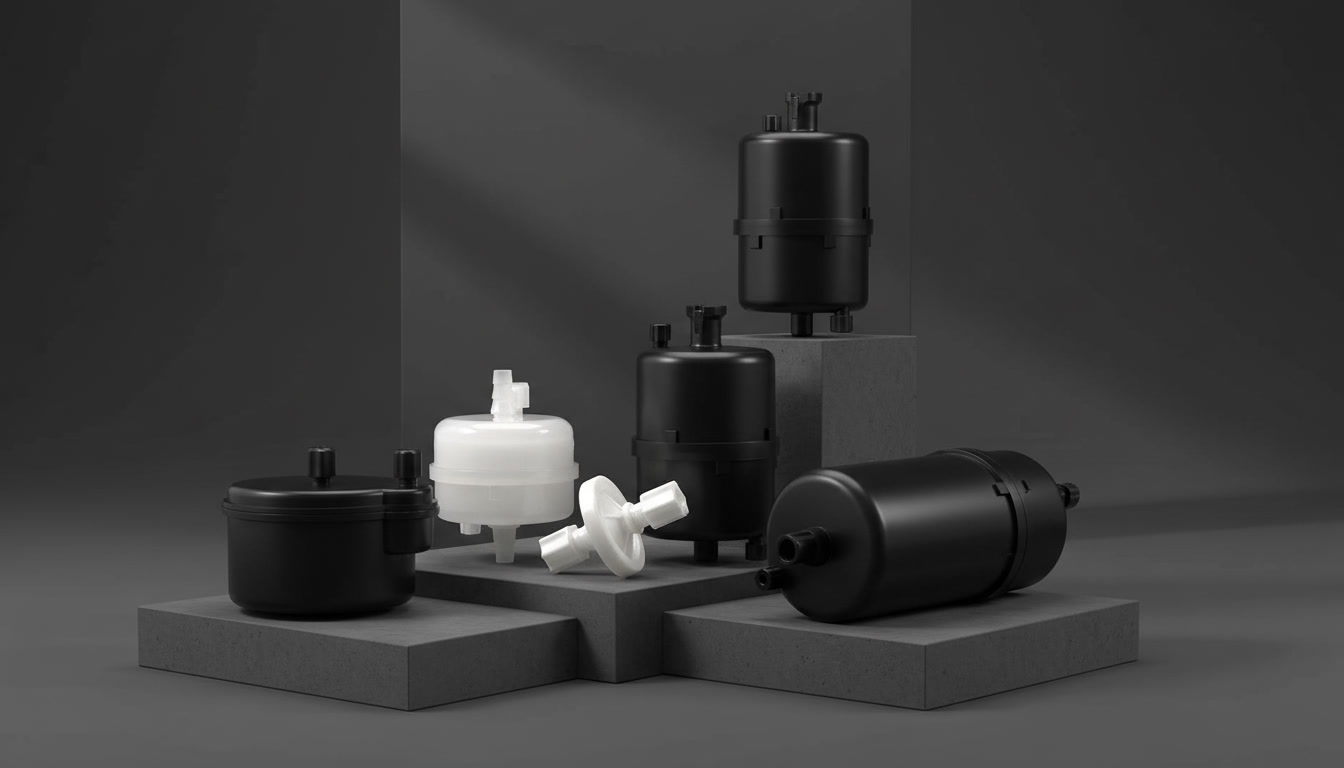

High-Performance Digital Inkjet Capsule Filters
Engineered to maintain ultimate jetting stability and eliminate micro-particle crisis. We provide immediate off-the-shelf system drop-ins side by side with custom agile blueprints.
1. Ready-to-Ship Standard Solutions
Select our pre-configured, rigorously field-tested drop-in assemblies optimized for specific equipment matrix architectures:
Corrugated & Packaging Loop
Optimized for high-speed single-pass packaging systems running heavy UV-curable or water-based industrial inks.
Wide-Format Commercial Setup
Tailored for industrial graphics scanning printers requiring agile printhead carriage tracking and minimum hydraulic payload.
High-Viscosity Textile Loop
Engineered specifically for high-loading reactive dyes, disperse inks, and highly volatile heavy organic pigment formulations.
2. Need Tailored Modifications? Advanced Customization Blueprint
If our standard setups do not perfectly match your internal plumbing spacing or unique fluid properties, KOYINTA provides full adaptive modular modifications:
Membrane Selection Matrix
Available footprints across Mini, Standard, and Max dimensions to fulfill distinct chemical compatibility parameters.
Photophobic Shell Formulations
Defends premium sensitive polymers against ambient UV radiation wavelengths, stopping inside-chamber stagnation.
Mechanical Coupling Ports
Custom connective flanges and specific heavy hydraulic connectors can be configured directly via blueprint integration.
3. Certified Engineering Specifications
| Engineering Parameter | Certified Specifications & Operational Limits |
|---|---|
| Removal Ratings | ≥ 99.8% Absolute Efficiency (β ≥ 500) via modified ISO 16889 protocols |
| Available Micron Ratings | 1.5 μm, 2.0 μm, 3.0 μm, 5.0 μm, 10 μm, 20 μm, 50 μm |
| Chemical pH Compatibility | pH 1 - 14 (Full-spectrum solvent, eco-solvent, aqueous, and UV chemical resistance) |
| Max. Operating Temperature | 50°C at Differential Pressure (ΔP) ≤ 0.10 MPa |
| Maximum Forward Pressure | 5.5 bar at 25°C |
| Recommended Change-out Limit | ΔP = 1.5 bar at 25°C (To avert fluid stagnation and pump overloading) |
| Bio-Safety & Cleanliness | Meets USP Class VI Plastics Biological Standards; 18 MΩ·cm UPW flushed |
Need Contractual Validation Challenges?
Download our complete Technical Whitepaper for complete dynamic flow curves, particle-counting logs, and custom configuration codes.
Supplementary Filtration Systems
Engineered to capture micro-aggregates without altering fluid properties or causing sudden hydraulic pressure drops.
Anti-Sedimentation Disc Filters
Optimized for high-opacity packaging inks, minimizing the risk of titanium dioxide or heavy white pigment particle agglomeration.
In-Line Last-Chance Filters
Positioned directly before printhead entry points as a critical sub-micron shield against unexpected mechanical debris.
100% PTFE Specialty Capsules
Fully encapsulated Teflon construction engineered for highly aggressive chemical solvents and specialized industrial fluids.
Ink Delivery & System Components
Ensuring smooth, laminar, pulseless flow from bulk storage distribution tanks to the microscopic nozzle rows.
Precision Diaphragm Ink Pumps
Heavy-duty, micro-metering brushless DC pumps engineered for volatile chemical ink recirculation. Delivers stable pressure loops without pulsing.
Chemically Inert Tubing
Premium solvent-resistant fluid lines that prevent light penetration, oxygen permeation, and internal ink staining.
System Maintenance Fluids
Formulated cleaning and flushing agents designed to safely break down stubborn ink residues during maintenance cycles.
